Place of Origin: | Jiangsu,China |
---|---|
ब्रांड नाम: | KAD |
प्रमाणन: | CE |
Model Number: | MX580S |
न्यूनतम आदेश मात्रा: | एक इकाई |
मूल्य: | $3000-$3500/unit |
Packaging Details: | Iron pallet of Single Mast Aluminum Aerial Work Platform 8 Meters Vertical Lift |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
आपूर्ति की क्षमता: | 100 यूनिट / महीना |
भार क्षमता: | 230 किग्रा | platform size: | 1.67m*0.74m |
---|---|---|---|
Max. lifting height: | 12m | Overall length: | 1810m |
कुल चौड़ाई: | 760 एमएम | रंग: | ग्राहकों की आवश्यकताएँ |
Warranty: | 1 Year | After-sales service provided: | Overseas service center available,Video technical support,Free spare parts |
Application: | Widely,For workshops,logistics and transportation |

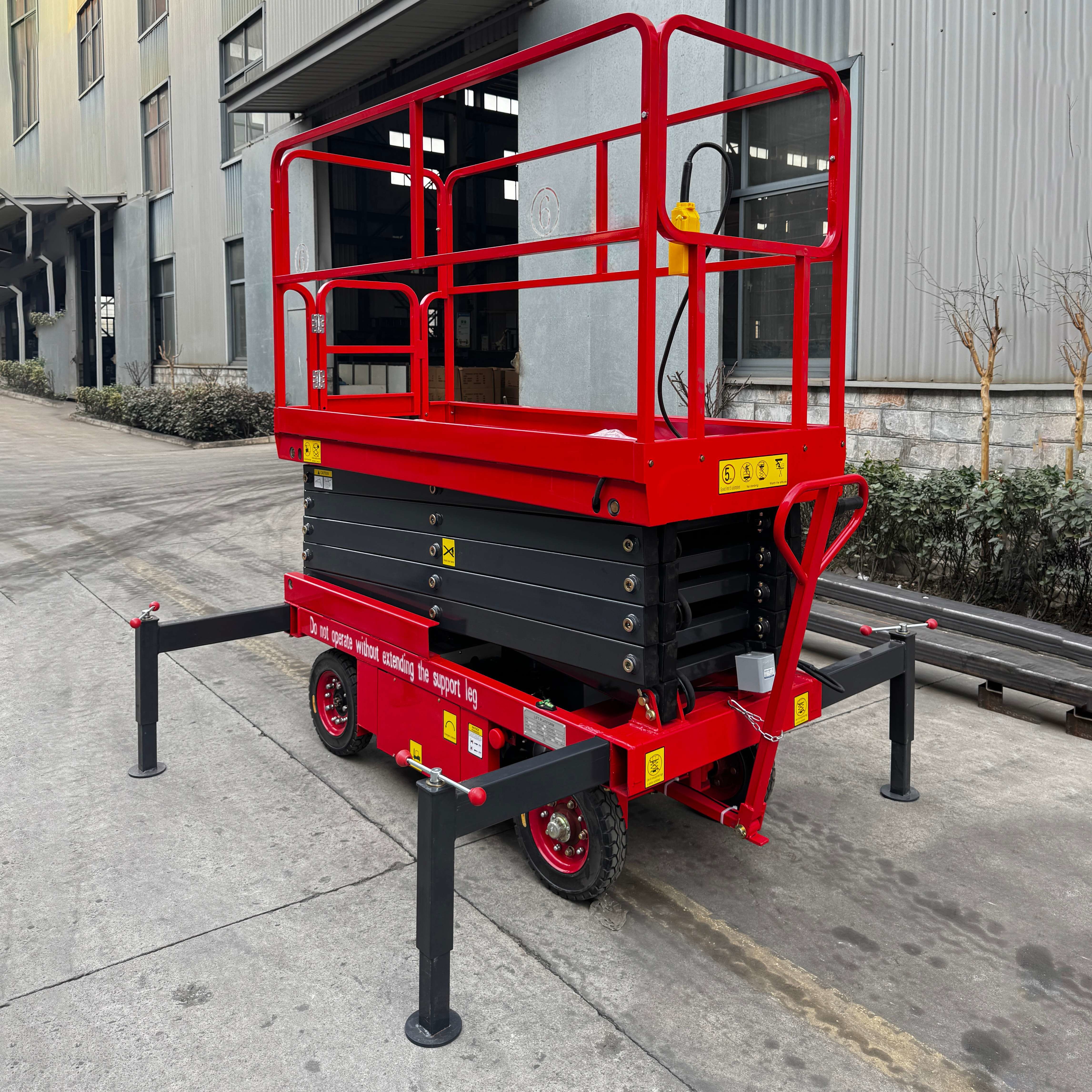

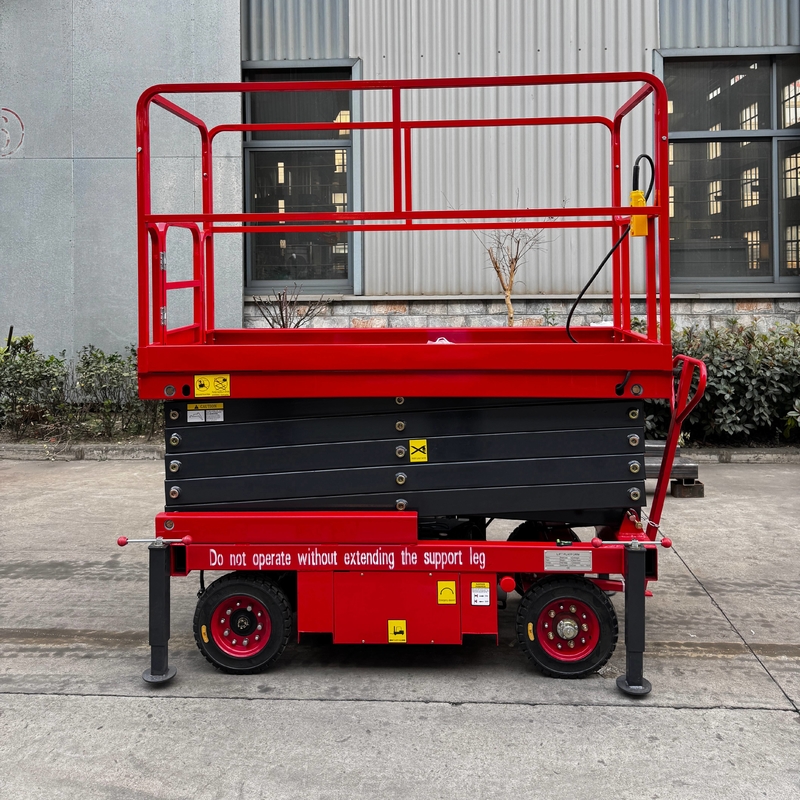

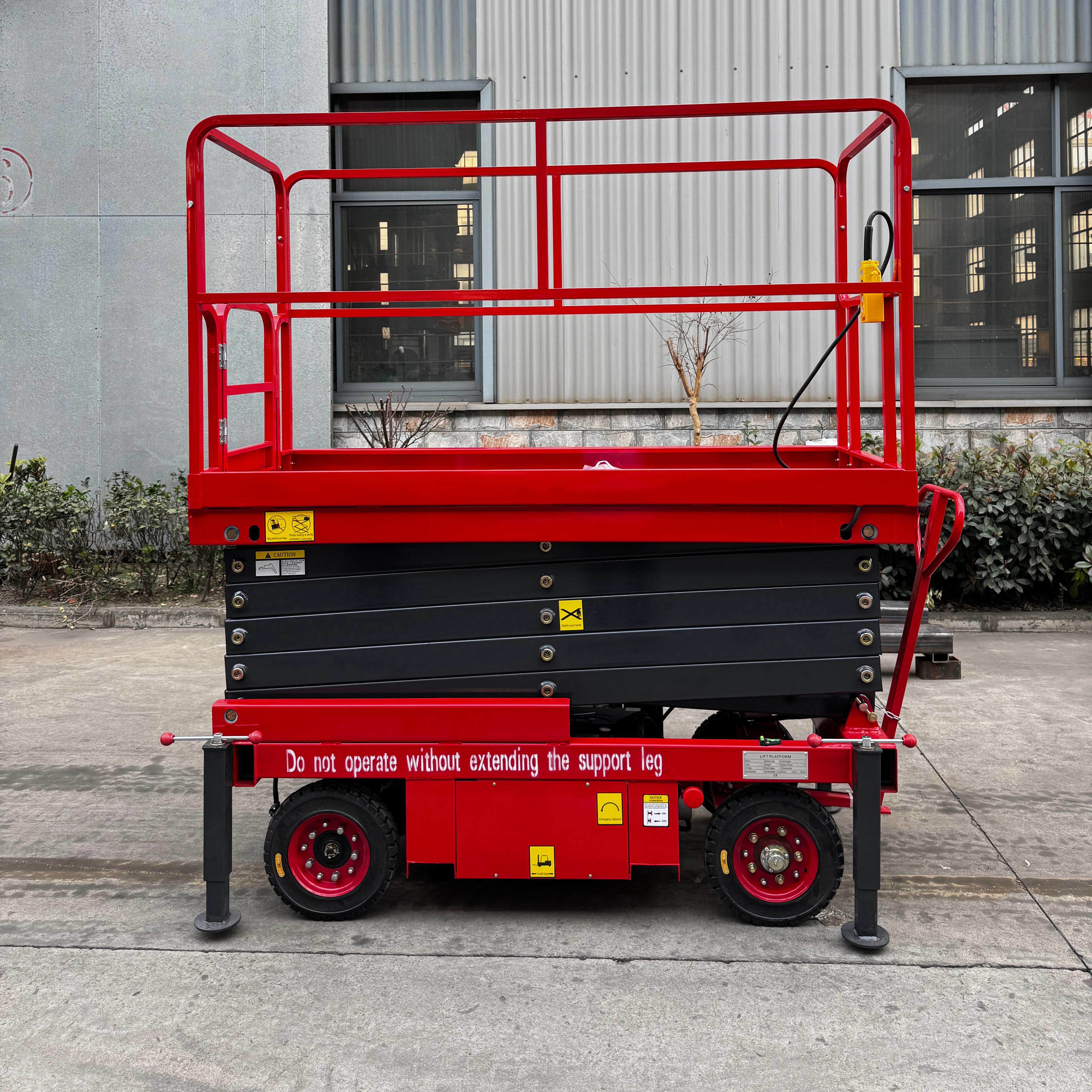

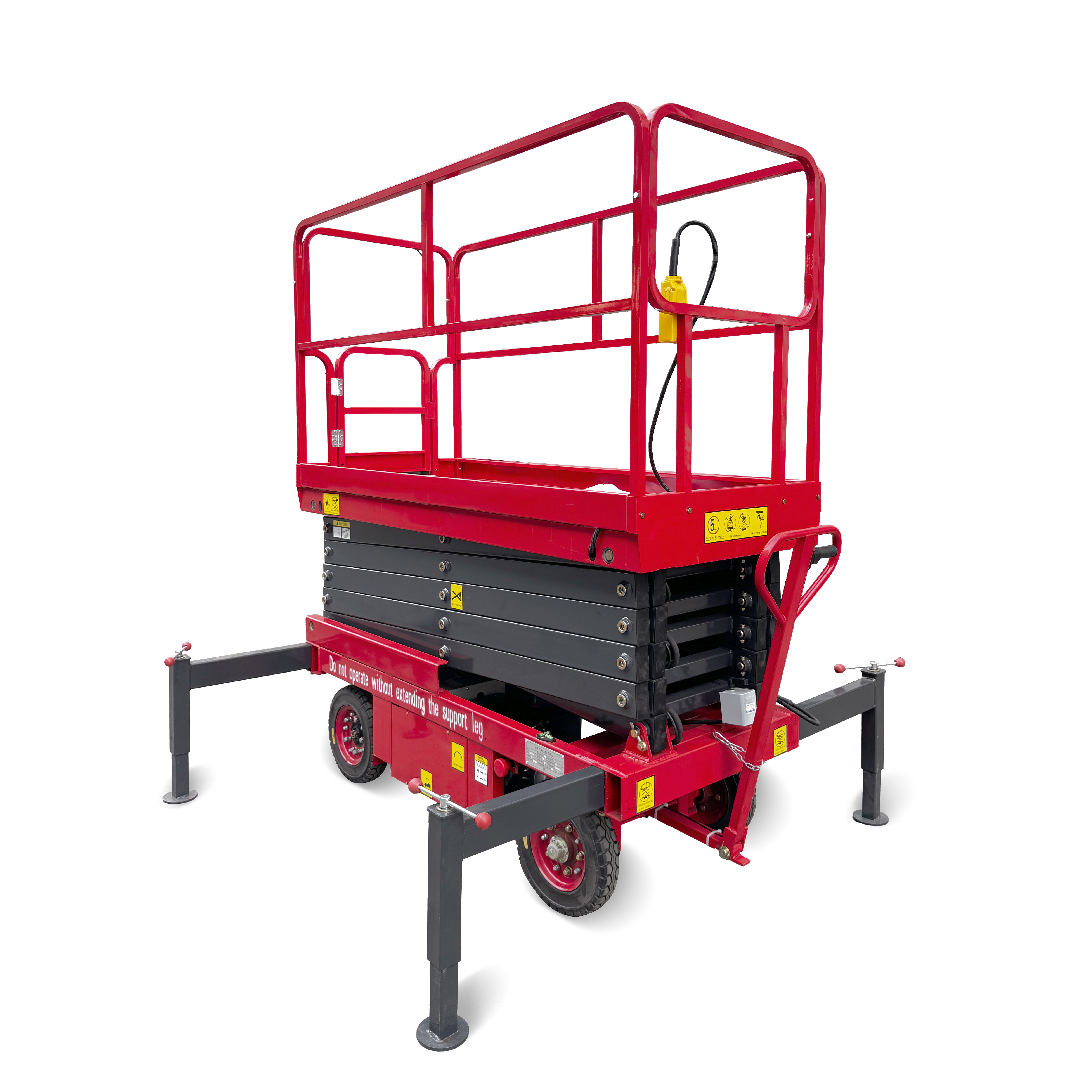

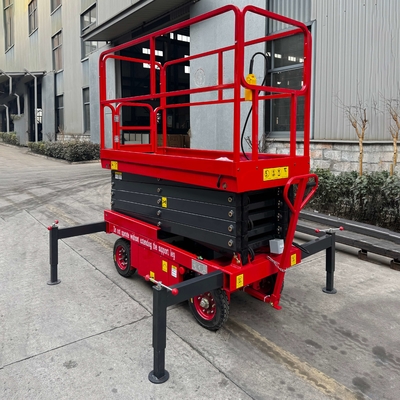

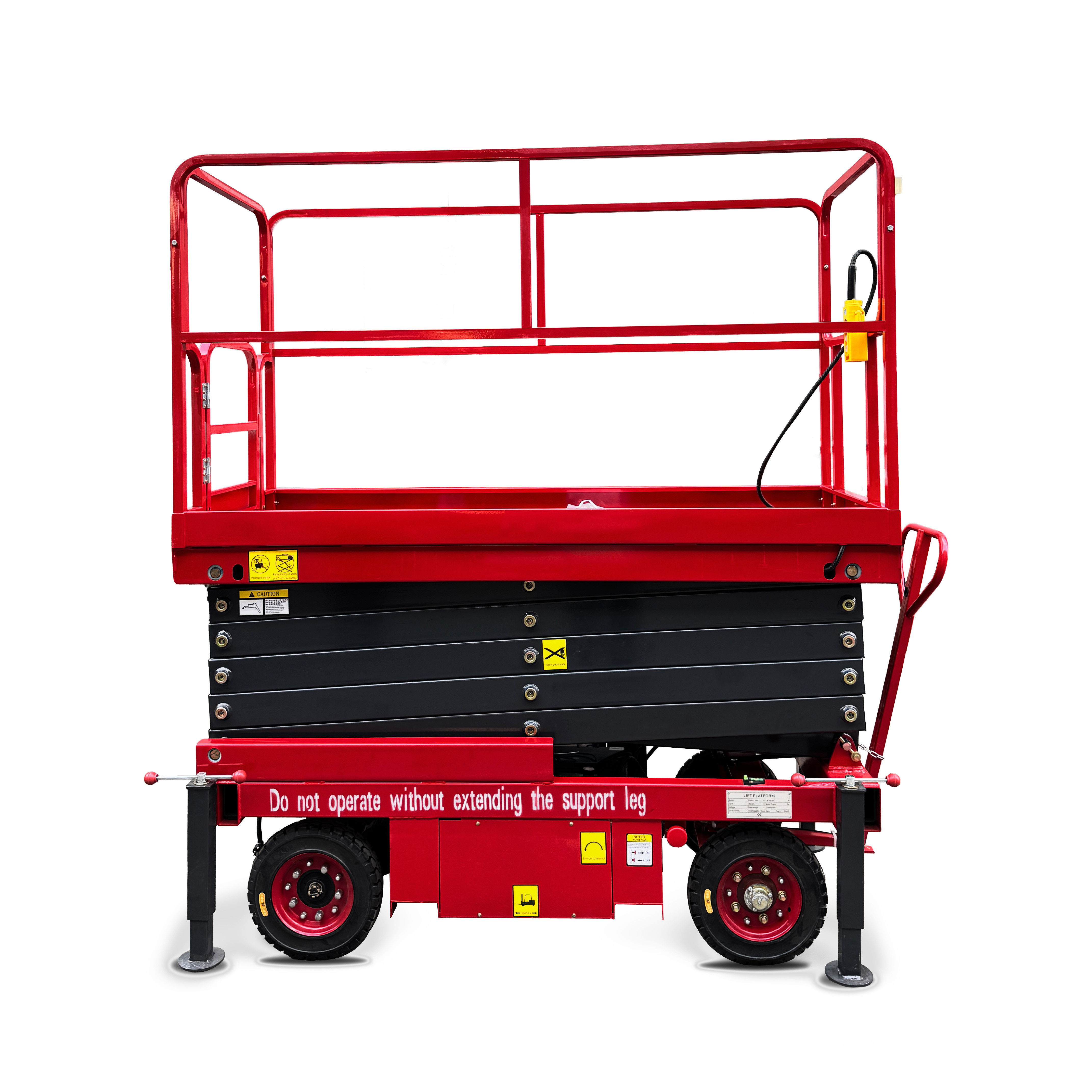

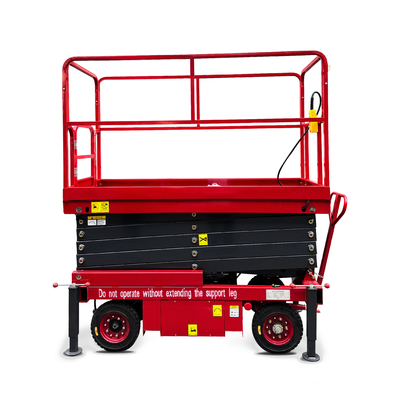

Mobile Hydraulic Scissor Lift Table Manual Push Platform Lifter
This mobile hydraulic scissor lift table is designed for smooth manual operation and easy mobility. Built for everyday industrial tasks, it features a robust hydraulic system and reinforced steel structure. Ideal for lifting and transporting materials in workshops, packing areas, and small warehouses, this platform lifter helps reduce strain and improve workflow efficiency. Its compact size makes it perfect for narrow spaces without sacrificing lifting capacity.
Model
|
MX580S
|
MX600SN
|
MX800SN
|
MX800S
|
MX1000S
|
MX1200S
|
S.W.L
|
230kg
|
230kg
|
230kg
|
450kg
|
320kg
|
320kg
|
S.W.L on Extension
|
113kg
|
113kg
|
113kg
|
113kg
|
113kg
|
113kg
|
Max.Workers Number
|
2
|
2
|
2
|
2
|
2
|
2
|
Working height max
|
7.8m
|
8m
|
10m
|
10m
|
12m
|
13.8m
|
Platform height max
|
5.8m
|
6m
|
8m
|
8m
|
10m
|
11.8m
|
Overall Length
|
1.81m
|
2.43m
|
2.43m
|
2.43m
|
2.43m
|
2.43m
|
Overall Width
|
0.76m
|
0.81m
|
0.81m
|
1.15m
|
1.15m
|
1.15m
|
Overall Height( Rails Up)
|
2.16m
|
2.18m
|
2.3m
|
2.31m
|
2.42m
|
2.55m
|
Overall Height( Rails Down)
|
1.82m
|
1.85m
|
1.87m
|
1.76m
|
1.91m
|
2.03m
|
Platform size(LxW)
|
1.67m*0.74m
|
2.27m*0.81m
|
2.27m*0.81m
|
2.27m*1.12m
|
2.27m*1.12m
|
2.27m*1.12m
|
Platform extension size
|
0.90m
|
0.90m
|
0.90m
|
0.90m
|
0.90m
|
0.90m
|
Ground Clearance ( Stowed)
|
0.09m
|
0.10m
|
0.10m
|
0.10m
|
0.10m
|
0.10m
|
Ground Clearance(Raised)
|
0.019m
|
0.019m
|
0.019m
|
0.019m
|
0.019m
|
0.019m
|
Wheelbase
|
1.36m
|
1.87m
|
1.87m
|
1.87m
|
1.87m
|
1.87m
|
Turning radius (inside)
|
0m
|
0m
|
0m
|
0m
|
0m
|
0m
|
Turning radius (outside)
|
1.64m
|
2.10m
|
2.10m
|
2.10m
|
2.10m
|
2.10m
|
Lift/Drive Motor
|
24V/3.3kw
|
24V/3.3kw
|
24V/3.3kw
|
24V/3.3kw
|
24V/3.3kw
|
24V/4.5kw
|
Travel Speed( Stowed)
|
3.0km/h
|
3.0km/h
|
3.0km/h
|
3.0km/h
|
3.0km/h
|
3.0km/h
|
Travel Speed( Raised)
|
1km/h
|
1km/h
|
1km/h
|
1km/h
|
1km/h
|
1km/h
|
Raise/Lower time
|
18/22sec
|
35/25sec
|
40/30sec
|
40/30sec
|
60/40sec
|
70/45sec
|
Power source
|
4*6V/210Ah
|
4*6V/225Ah
|
4*6V/225Ah
|
4*6V/225Ah
|
4*6V/240Ah
|
4*6V/260Ah
|
Charger
|
24V/30A
|
24V/30A
|
24V/30A
|
24V/30A
|
24V/30A
|
24V/30A
|
Gradeability
|
25%
|
25%
|
25%
|
25%
|
25%
|
25%
|
