Taizhou Kayond मशीनरी कं, लिमिटेड
| न्यूनतम आदेश मात्रा: | 1 |
|---|---|
| मूल्य: | 4403 |
| प्रतिरूप संख्या।: | CDD1550 | भार क्षमता: | 1-1.5 टन |
|---|---|---|---|
| भार केन्द्र: | 500 मिमी | लिफ्ट की ऊंचाई: | 5000 मिमी |
| लोड ऊंचाई: | 5500 मिमी | कुल वजन: | 960.000kg |
| बैटरी की क्षमता: | 24वी/210एएच | कांटा चौड़ाई: | 550/680 मिमी |
| टर्निंग रेडियस: | 1738/2099 मिमी | कांटा लंबाई: | 1070 मिमी |
| ड्राइविंग मोटर: | 1.2KW | मोटर उठाना: | 2.2KW |
| टायर का आकार: | 300/250 मिमी | संपूर्ण आकार: | 2170*1570*2100 मिमी |
| ड्राइविंग गति: | 4km/एच | ||
| प्रमुखता देना: | Highest Height 5.5m Electric Pallet Stacker,Load Capacity 1-1.5t Electric Forklift Stacker,Load Center 500mm Platform Electric Stacker |
||

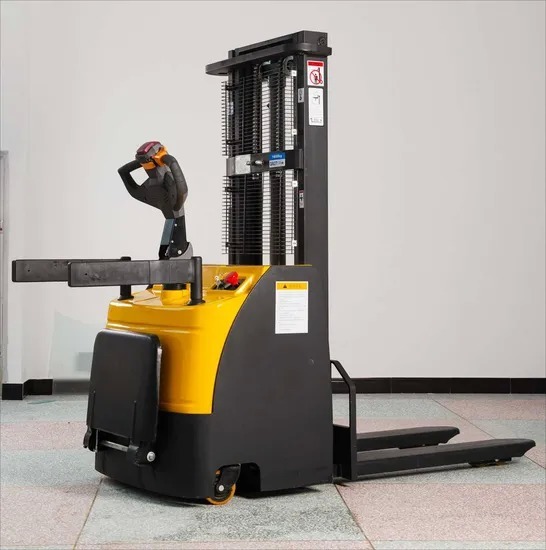

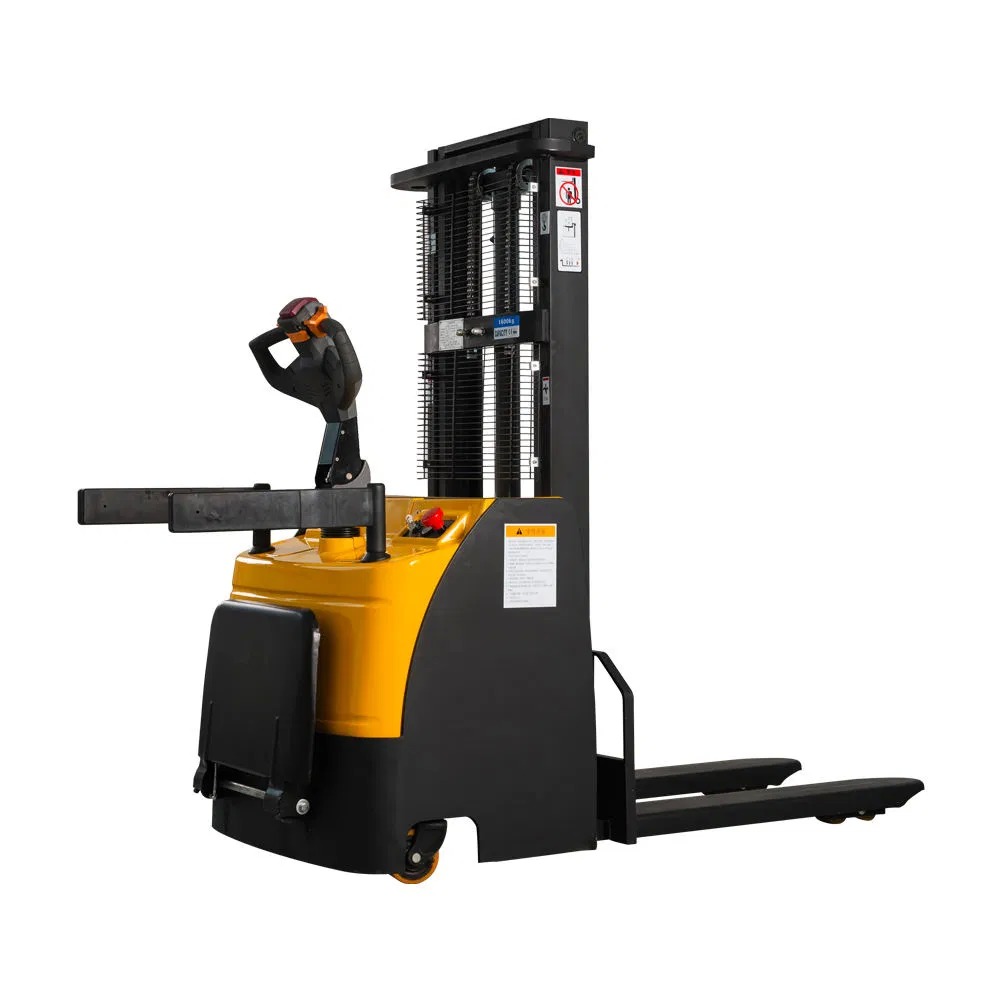

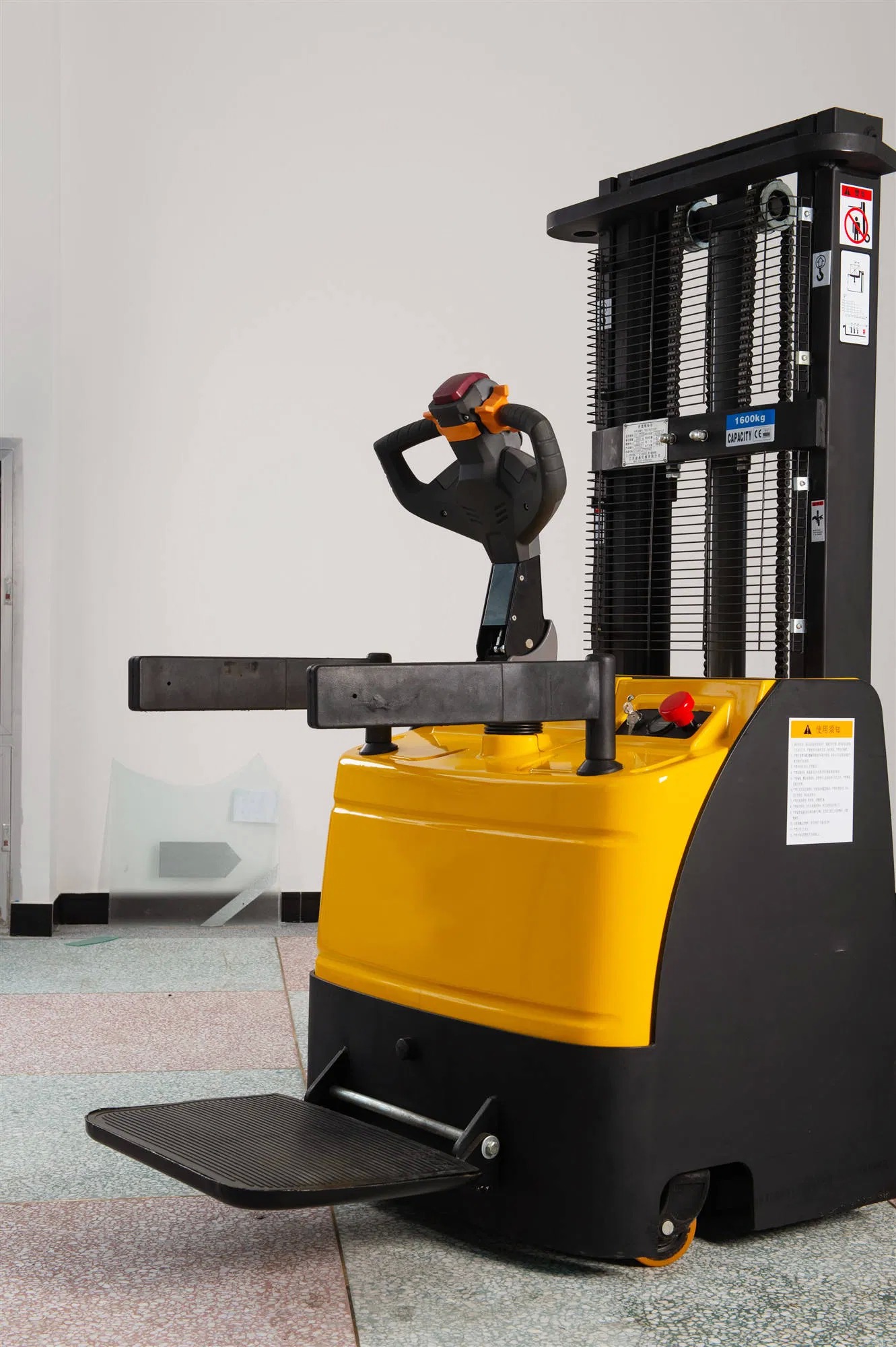

The full electric stacker is designed for efficient loading, stacking, and short-distance palletizing of goods. Featuring a simple structure with flexible operation and excellent micro-operability, it offers high safety performance. Ideal for operations in narrow passages and confined spaces, this stacker can access ship cabins, carriages, and containers for palletized goods handling.
| Model | CDD1030 | CDD1530 |
|---|---|---|
| Load Capacity | 1000 kg | 1500 kg |
| Lifting Height | 3000 mm | 3000 mm |
| Load Center | 500 mm | 500 mm |
| Fork Size | 1220×100×40 mm | 1220×100×40 mm |
| Ground Clearance | 30 mm | 30 mm |
| Pedal Length | 410 mm | 410 mm |
| Handler Height | 1490 mm | 1490 mm |
| Outer Distance Between Forks | 685 mm | 685 mm |
| Inner Distance Between Forks | 345 mm | 345 mm |
| Tyre Type | Polyurethane | Polyurethane |
| Control Way | Handler | Handler |
| Speed Regulation Way | Stepless Speed Regulation | Stepless Speed Regulation |
| Min. Turning Radius | 1500 mm | 1500 mm |
| Driving Speed with Full Loads | 4 km/h | 4 km/h |
| Gradient | 3°/5° | 3°/5° |
| Battery | 24V/210A | 24V/210A |
| Driving Motor | 1.2 KW | 1.2 KW |
| Lifting Motor | 2.2 KW | 2.2 KW |
| Tyre Size | 300/250 mm | 300/250 mm |
| Overall Size | 2170×1570×2100 mm | 2170×1570×2100 mm |
| Weight | 900 kg | 900 kg |
| Reference Working Time | 6 h | 6 h |
| Increased Height per Tonnage | 1600/2000/2500/3000/3500 mm | 1600/2000/2500/3000/3500 mm |
| Max Height | 2100/1600/1850/2100/2350 mm | 2100/1600/1850/2100/2350 mm |

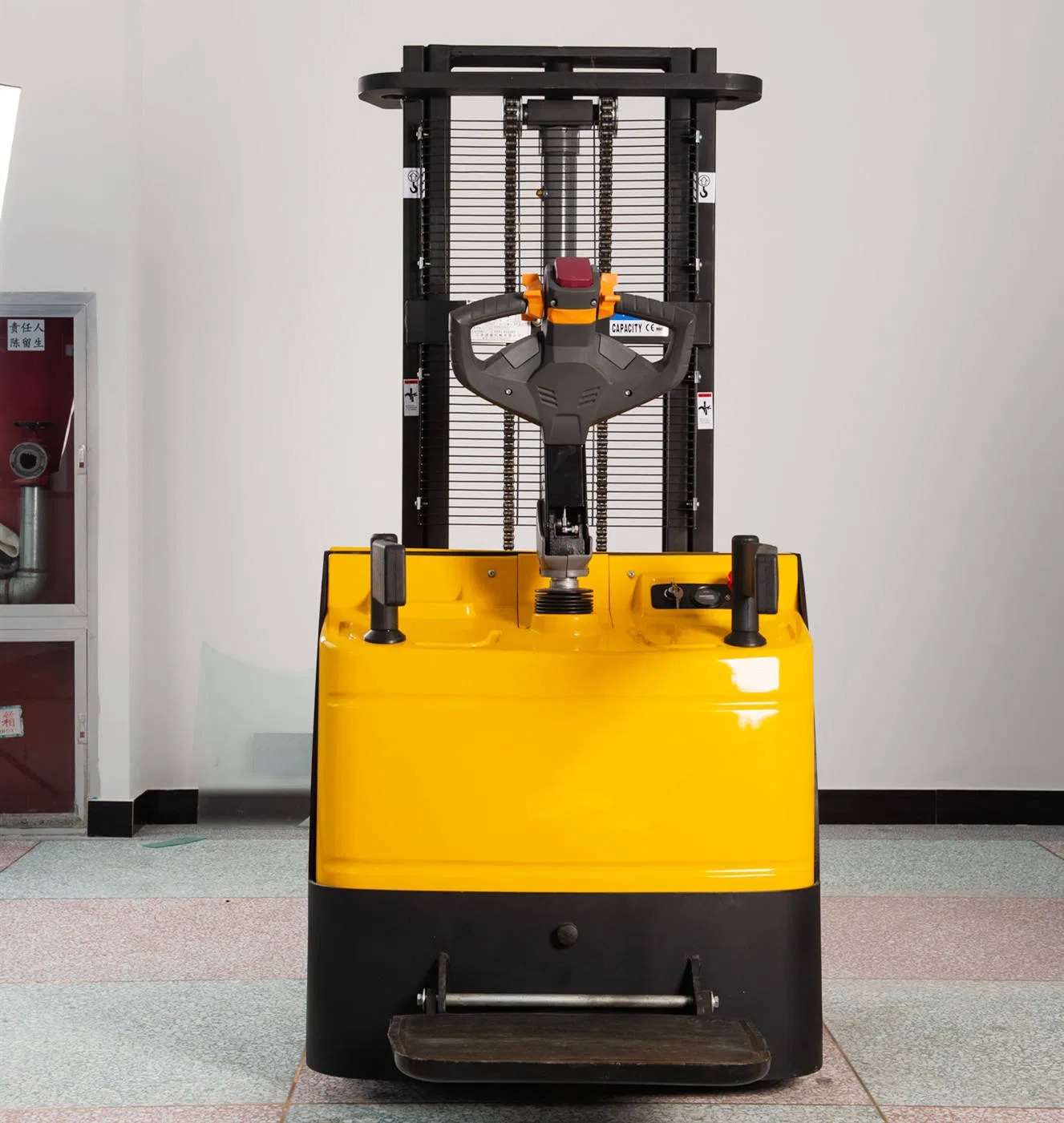

Brand: KAD - Domestic premium control handle featuring functional buttons for sensitive UP/DOWN and FORWARD/BACKWARD control.
Combined with key, battery indicator, and emergency switch. The functional panel features an ergonomic design for comfortable operation.

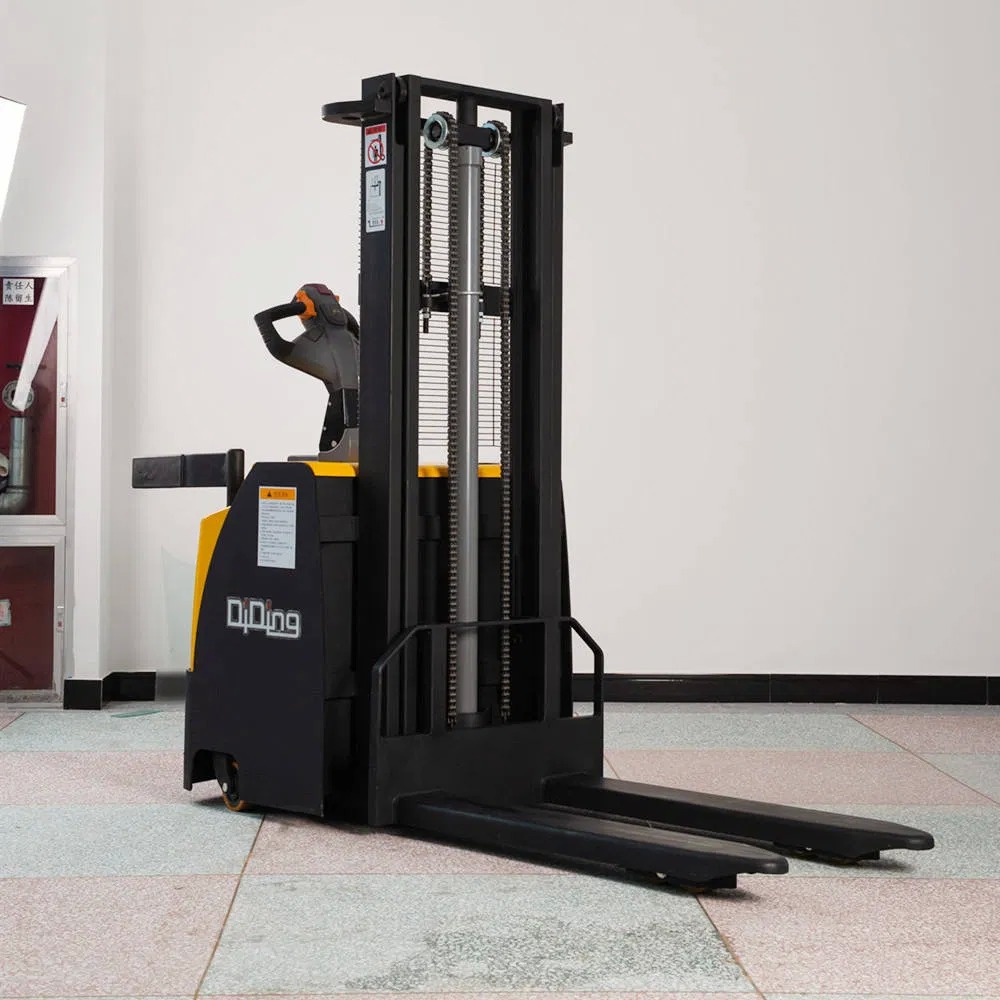

Strong cylinder and chain ensure smooth fork operation. Available in 1-stage, 2-stage, or 3-stage mast configurations.
A: Generally, we pack our goods in paper package and Iron pallet. We can pack the goods in your branded boxes after getting your authorization letters.
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. Or as negotiated.
A: EXW, FOB, CFR, CIF, DDU.
A: Generally, it will take 5 to 30 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.
A: Yes, we have 100% test before delivery.
A: 1. We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
