Electric Pallet Stacker with 500mm Load Center 1070mm Fork Length and 1738/2099mm Turning Radius

Electric Pallet Stacker with 500mm Load Center 1070mm Fork Length and 1738/2099mm Turning Radius
Electric Pallet Stacker with 500mm Load Center 1070mm Fork Length and 1738/2099mm Turning Radius Electric Pallet Stacker with 500mm Load Center 1070mm Fork Length and 1738/2099mm Turning Radius Electric Pallet Stacker with 500mm Load Center 1070mm Fork Length and 1738/2099mm Turning Radius Electric Pallet Stacker with 500mm Load Center 1070mm Fork Length and 1738/2099mm Turning Radius Electric Pallet Stacker with 500mm Load Center 1070mm Fork Length and 1738/2099mm Turning Radius Electric Pallet Stacker with 500mm Load Center 1070mm Fork Length and 1738/2099mm Turning Radius Electric Pallet Stacker with 500mm Load Center 1070mm Fork Length and 1738/2099mm Turning Radius Electric Pallet Stacker with 500mm Load Center 1070mm Fork Length and 1738/2099mm Turning Radius Electric Pallet Stacker with 500mm Load Center 1070mm Fork Length and 1738/2099mm Turning Radius Electric Pallet Stacker with 500mm Load Center 1070mm Fork Length and 1738/2099mm Turning Radius Electric Pallet Stacker with 500mm Load Center 1070mm Fork Length and 1738/2099mm Turning Radius Electric Pallet Stacker with 500mm Load Center 1070mm Fork Length and 1738/2099mm Turning Radius
बुनियादी जानकारी
न्यूनतम आदेश मात्रा: 1
मूल्य: 2885
सबसे अच्छी कीमत अब से संपर्क करें
प्रतिरूप संख्या।: CDD1516 भार क्षमता: 1-1.5 टन
भार केन्द्र: 500 मिमी लिफ्ट की ऊंचाई: 1600 मिमी
कुल वजन: 900.000 किग्रा बैटरी की क्षमता: 24वी/210एएच
कांटा चौड़ाई: 850 मिमी टर्निंग रेडियस: 1738/2099 मिमी
कांटा लंबाई: 1070 मिमी ड्राइविंग मोटर: 1.2KW
मोटर उठाना: 2.2KW टायर का आकार: 300/250 मिमी
संपूर्ण आकार: 2170*1570*2100 मिमी ड्राइविंग गति: 4km/एच
ढाल: 3 डिग्री / 5 डिग्री
प्रमुखता देना:

500mm Load Center Electric Pallet Stacker

,

1070mm Fork Length Full Electric Stacker

,

1738/2099mm Turning Radius Electric Forklift

Great Electric Pallet Stacker Balance Battery Forklift DC Drive Motor
Electric Pallet Stacker with 500mm Load Center 1070mm Fork Length and 1738/2099mm Turning Radius 0
Full electric stackers are designed for loading, stacking, and short-distance palletizing of goods. Featuring a simple structure and flexible operation, they offer excellent micro-operability and high safety performance. Ideal for operations in narrow passages and limited spaces, these stackers can efficiently work in ship cabins, carriages, and containers for pallet goods handling.
Product Specifications
Model CDD1030 CDD1530
Load Capacity 1000 kg 1500 kg
Lifting Height 3000 mm 3000 mm
Load Center 500 mm 500 mm
Fork Size 1220×100×40 mm 1220×100×40 mm
Ground Clearance 30 mm 30 mm
Driving Speed with Full Loads 4 km/h 4 km/h
Battery 24V/210A 24V/210A
Driving Motor 1.2 KW 1.2 KW
Lifting Motor 2.2 KW 2.2 KW
Overall Size 2170×1570×2100 mm 2170×1570×2100 mm
Weight 900 kg 900 kg
Detailed Photos

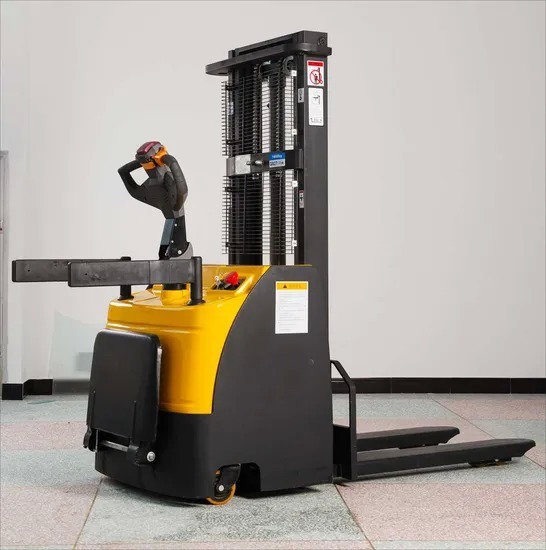

Electric Pallet Stacker with 500mm Load Center 1070mm Fork Length and 1738/2099mm Turning Radius 1
Machine Components
Control Handle: KAD brand domestic famous control handle with functional buttons for sensitive UP/DOWN, FORWARD/BACKWARD control.

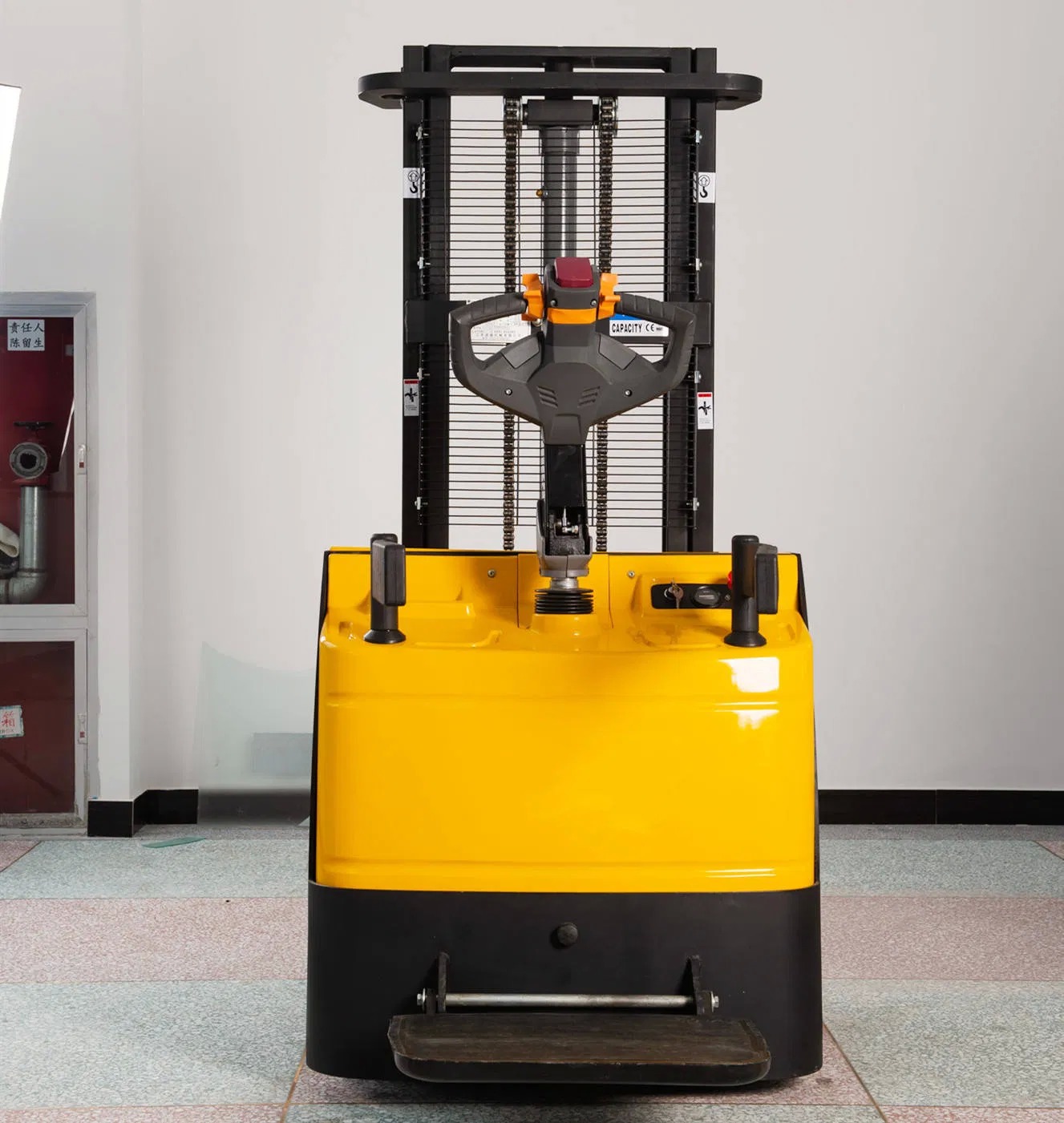

Electric Pallet Stacker with 500mm Load Center 1070mm Fork Length and 1738/2099mm Turning Radius 2
Operation Panel: Features key, battery indicator, and emergency switch. The functional panel with beautiful design enhances work efficiency and ease.

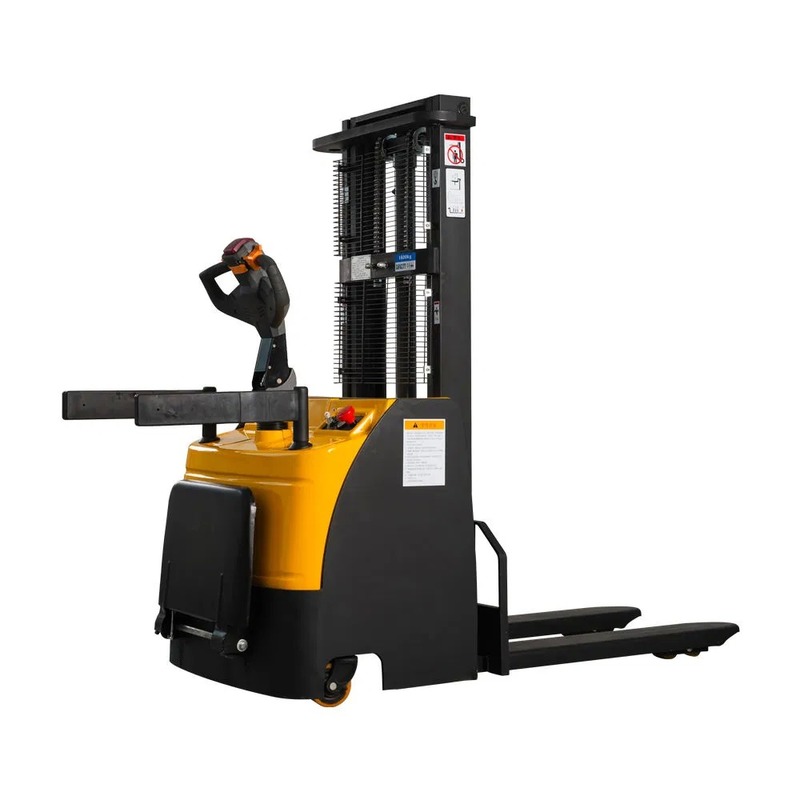

Electric Pallet Stacker with 500mm Load Center 1070mm Fork Length and 1738/2099mm Turning Radius 3
Mast System: Strong cylinder and chain ensure smooth fork operation. Available in 1-stage, 2-stage, or 3-stage mast configurations.

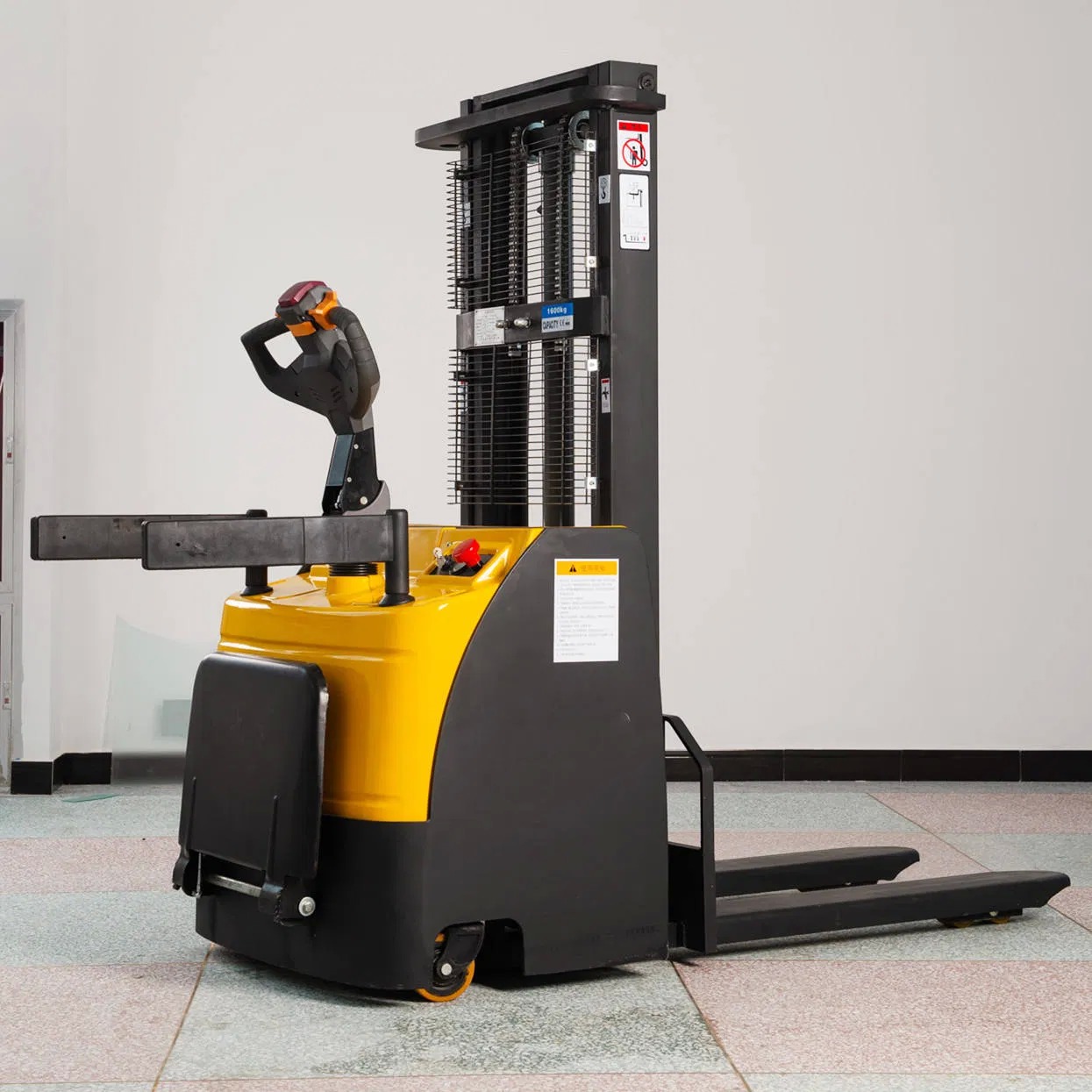

Electric Pallet Stacker with 500mm Load Center 1070mm Fork Length and 1738/2099mm Turning Radius 4 Electric Pallet Stacker with 500mm Load Center 1070mm Fork Length and 1738/2099mm Turning Radius 5
Key Features
Side-positioned drive system and strong caster provide exceptional stability and easy maneuverability.
Frequently Asked Questions
Q1. What is your terms of packing?
A: Generally, we pack our goods in paper package and Iron pallet. We can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. Or as negotiated.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 5 to 30 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q6. How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
