Taizhou Kayond मशीनरी कं, लिमिटेड
| न्यूनतम आदेश मात्रा: | 1 |
|---|---|
| मूल्य: | 2885 |
| प्रतिरूप संख्या।: | CDD1516 | भार क्षमता: | 1-1.5 टन |
|---|---|---|---|
| भार केन्द्र: | 500 मिमी | लिफ्ट की ऊंचाई: | 1600 मिमी |
| बैटरी की क्षमता: | 24वी/210एएच | कांटा चौड़ाई: | 850 मिमी |
| टर्निंग रेडियस: | 1738/2099 मिमी | कांटा लंबाई: | 1070 मिमी |
| कुल वजन: | 1000.000kg | ड्राइविंग मोटर: | 1.2KW |
| मोटर उठाना: | 2.2KW | टायर प्रकार: | पोलीयूरीथेन |
| ड्राइविंग गति: | 4km/एच | संपूर्ण आकार: | 2170*1570*2100 मिमी |
| धरातल: | 30 मिमी | ||

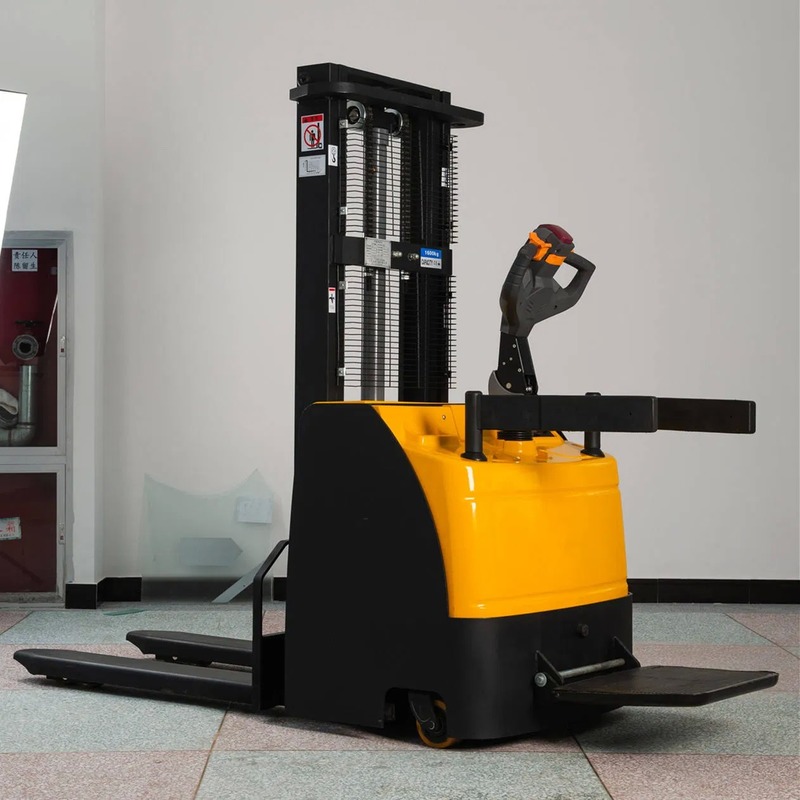

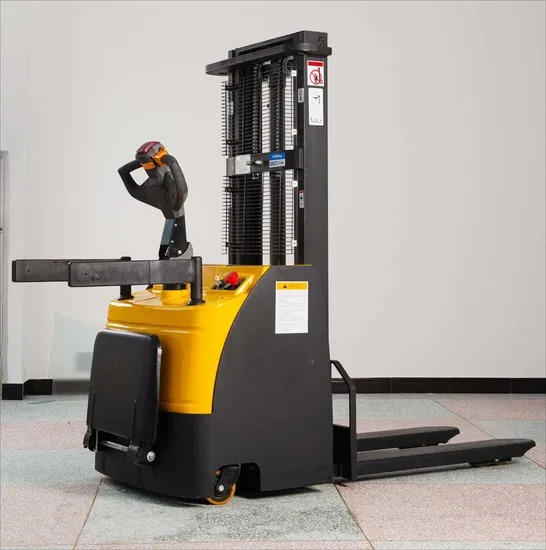

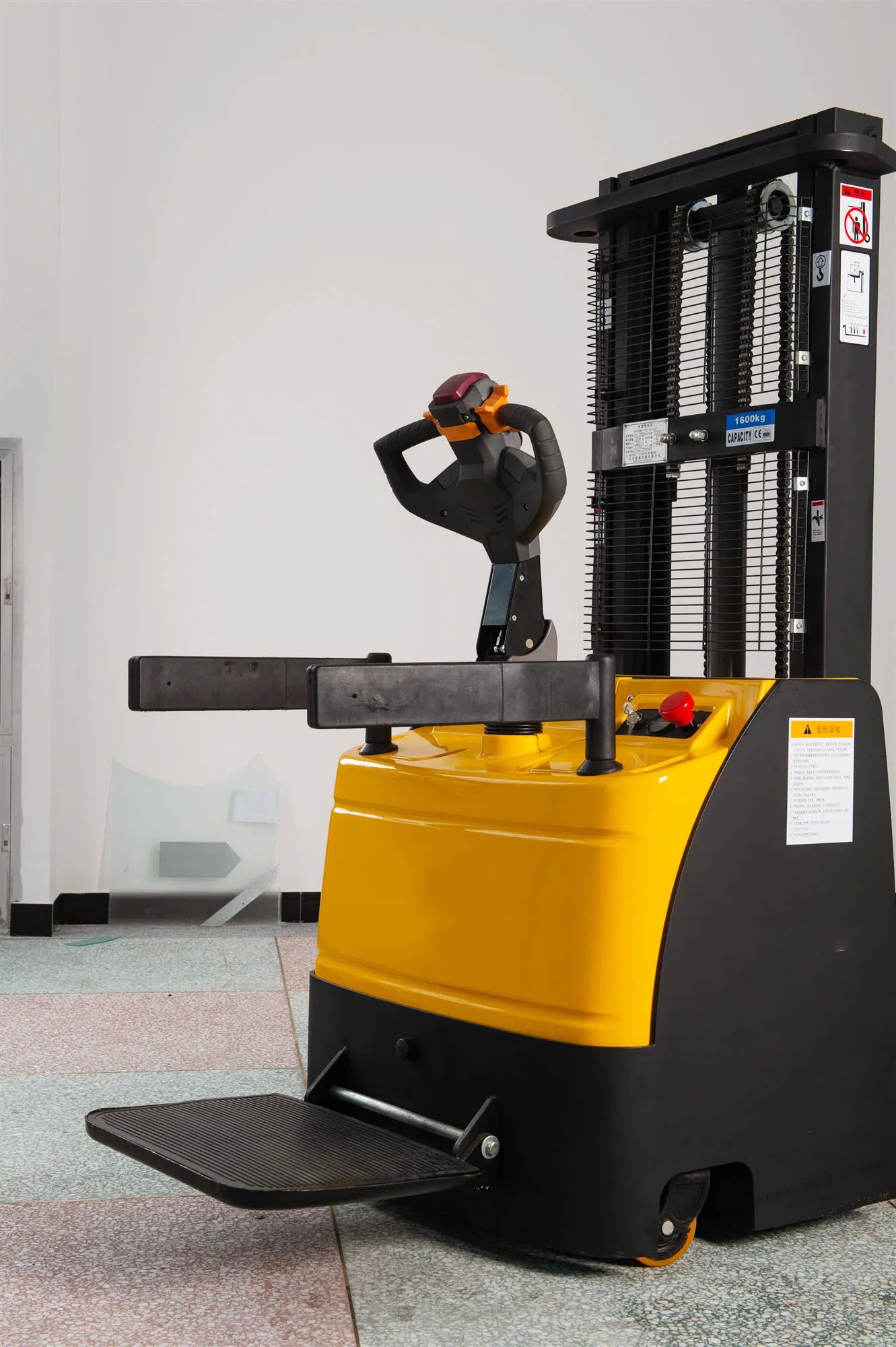

| प्रमुखता देना: | 850mm Fork Width Electric Pallet Stacker,1738/2099mm Turning Radius Pallet Stacker,500mm Load Center Electric Forklift |
||
| Model | CDD1030 | CDD1530 |
|---|---|---|
| Load Capacity | 1000 kg | 1500 kg |
| Lifting Height | 3000 mm | 3000 mm |
| Load Center | 500 mm | 500 mm |
| Fork Size | 1220×100×40 mm | 1220×100×40 mm |
| Ground Clearance | 30 mm | 30 mm |
| Pedal Length | 410 mm | 410 mm |
| Handler Height | 1490 mm | 1490 mm |
| Outer Distance Between Forks | 685 mm | 685 mm |
| Inner Distance Between Forks | 345 mm | 345 mm |
| Tyre Type | Polyurethane | Polyurethane |
| Control Way | Handler | Handler |
| Speed Regulation Way | Stepless Speed Regulation | Stepless Speed Regulation |
| Min. Turning Radius | 1500 mm | 1500 mm |
| Driving Speed with Full Loads | 4 km/h | 4 km/h |
| Gradient | 3°/5° | 3°/5° |
| Battery | 24V/210A | 24V/210A |
| Driving Motor | 1.2 KW | 1.2 KW |
| Lifting Motor | 2.2 KW | 2.2 KW |
| Tyre Size | 300/250 mm | 300/250 mm |
| Overall Size | 2170×1570×2100 mm | 2170×1570×2100 mm |
| Weight | 900 kg | 900 kg |
| Reference Working Time | 6 h | 6 h |
| Increased Height Options | 1600/2000/2500/3000/3500 mm | 1600/2000/2500/3000/3500 mm |
| Max Height | 2100/1600/1850/2100/2350 mm | 2100/1600/1850/2100/2350 mm |
