| उत्पत्ति के प्लेस: | चीन |
|---|---|
| ब्रांड नाम: | KAD |
| प्रमाणन: | CE |
| मॉडल संख्या: | सीपीडी |
| न्यूनतम आदेश मात्रा: | 1 |
| मूल्य: | 6000-8000 |
| पैकेजिंग विवरण: | लौह फूस + प्लास्टिक फिल्म |
| प्रसव के समय: | 10 कार्य दिवस |
| भुगतान शर्तें: | एल/सी, डी/ए, डी/पी, टी/टी, वेस्टर्न यूनियन, मनीग्राम |
| आपूर्ति की क्षमता: | 50यूनिट/माह |
| भार क्षमता: | 1000-3500 किलोग्राम | लोड ऊंचाई: | 3000 मिमी-6000 मिमी |
|---|---|---|---|
| बैटरी: | 12V/80Ah | प्रकार: | डीजल फोकलिफ्ट |
| रंग: | ग्राहक की मांग की | विशेषता: | आसान संचालन सुरक्षा सुविधा |
| आवेदन: | उद्योग | प्रमाणन: | CE |
| शक्ति प्रकार: | डीजल पावर | ||
| प्रमुखता देना: | 5 ton diesel forklift imported engine,heavy duty diesel forklift unmatched power,battery operated forklift with warranty |
||

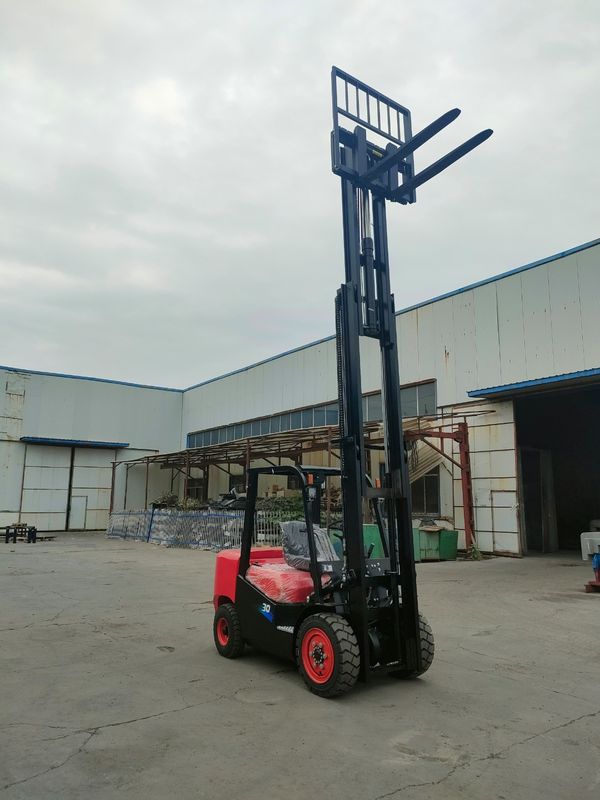

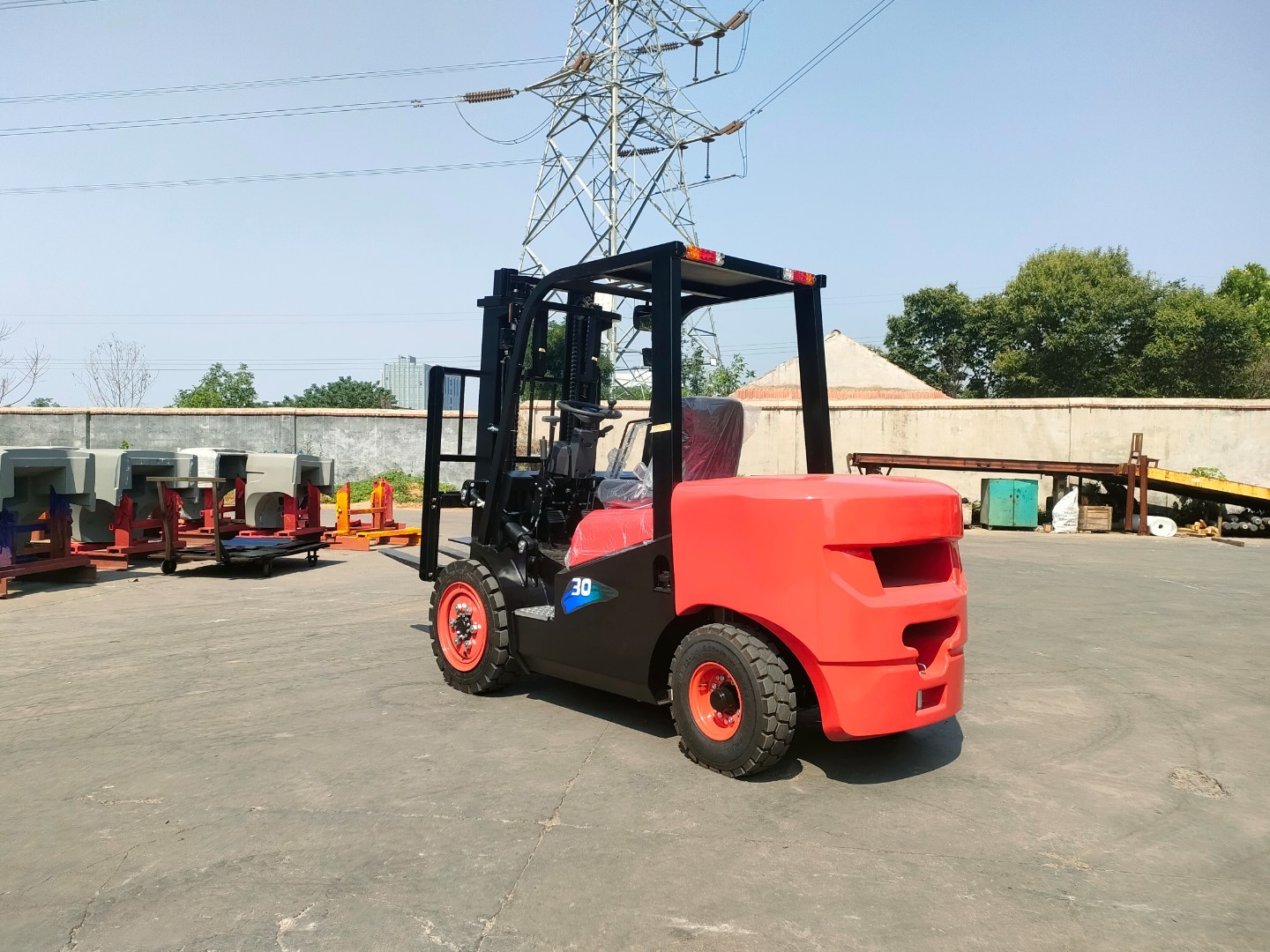

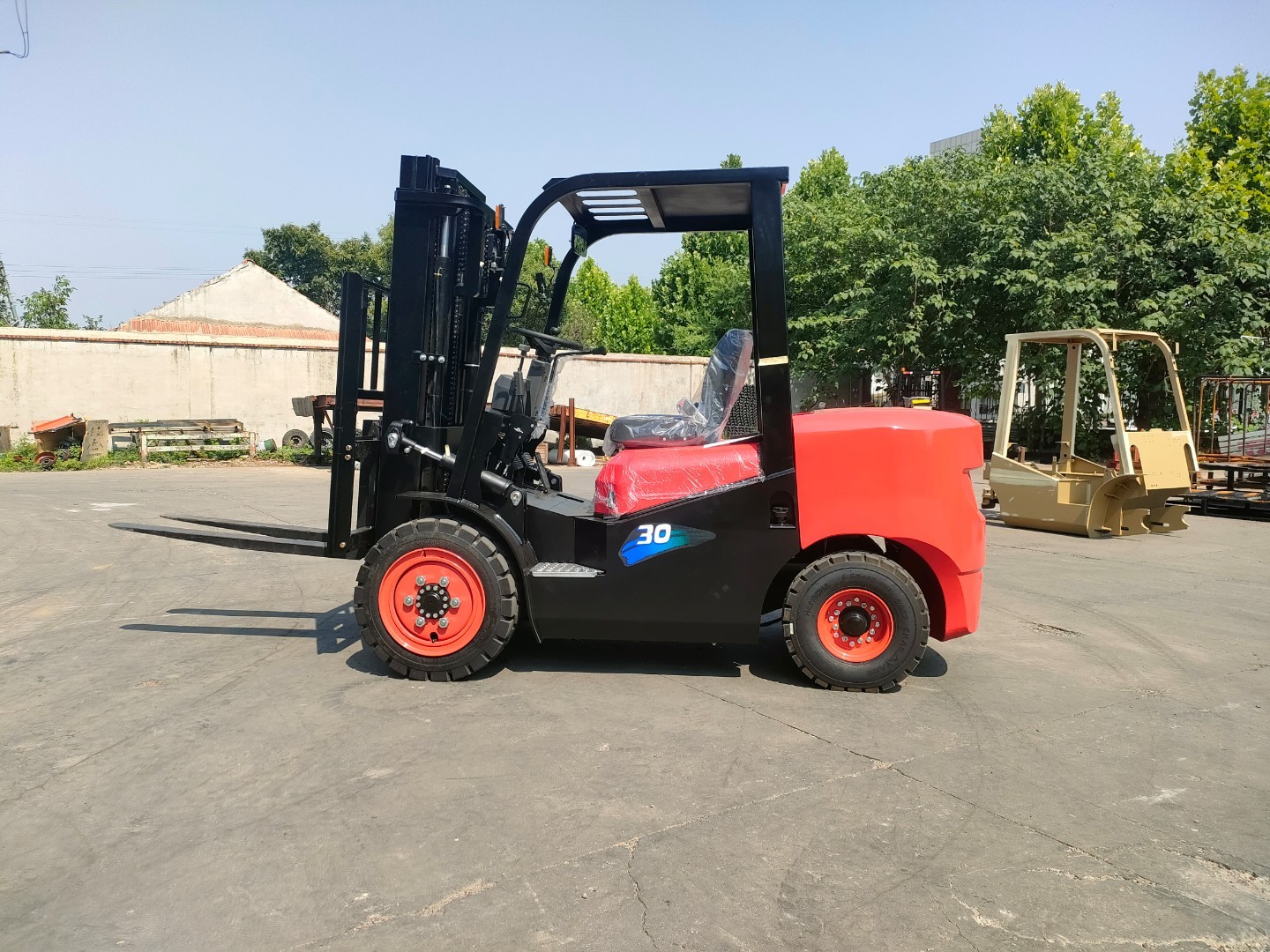

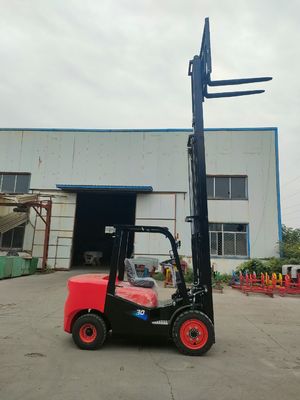

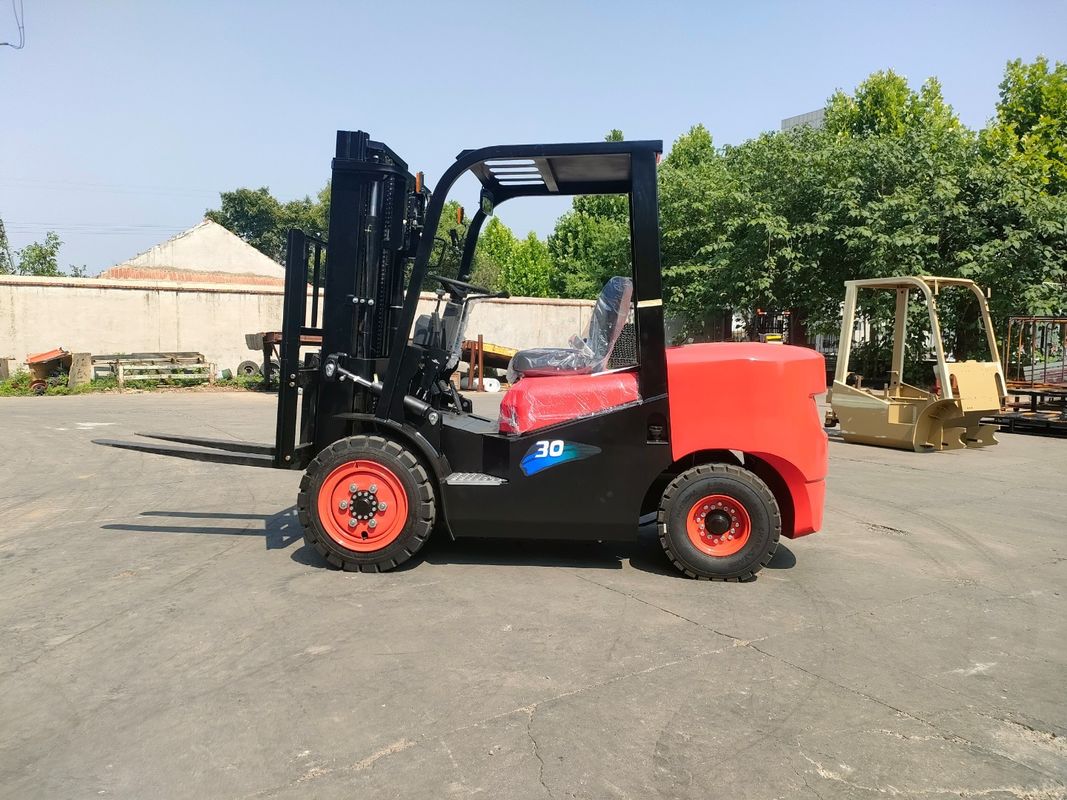

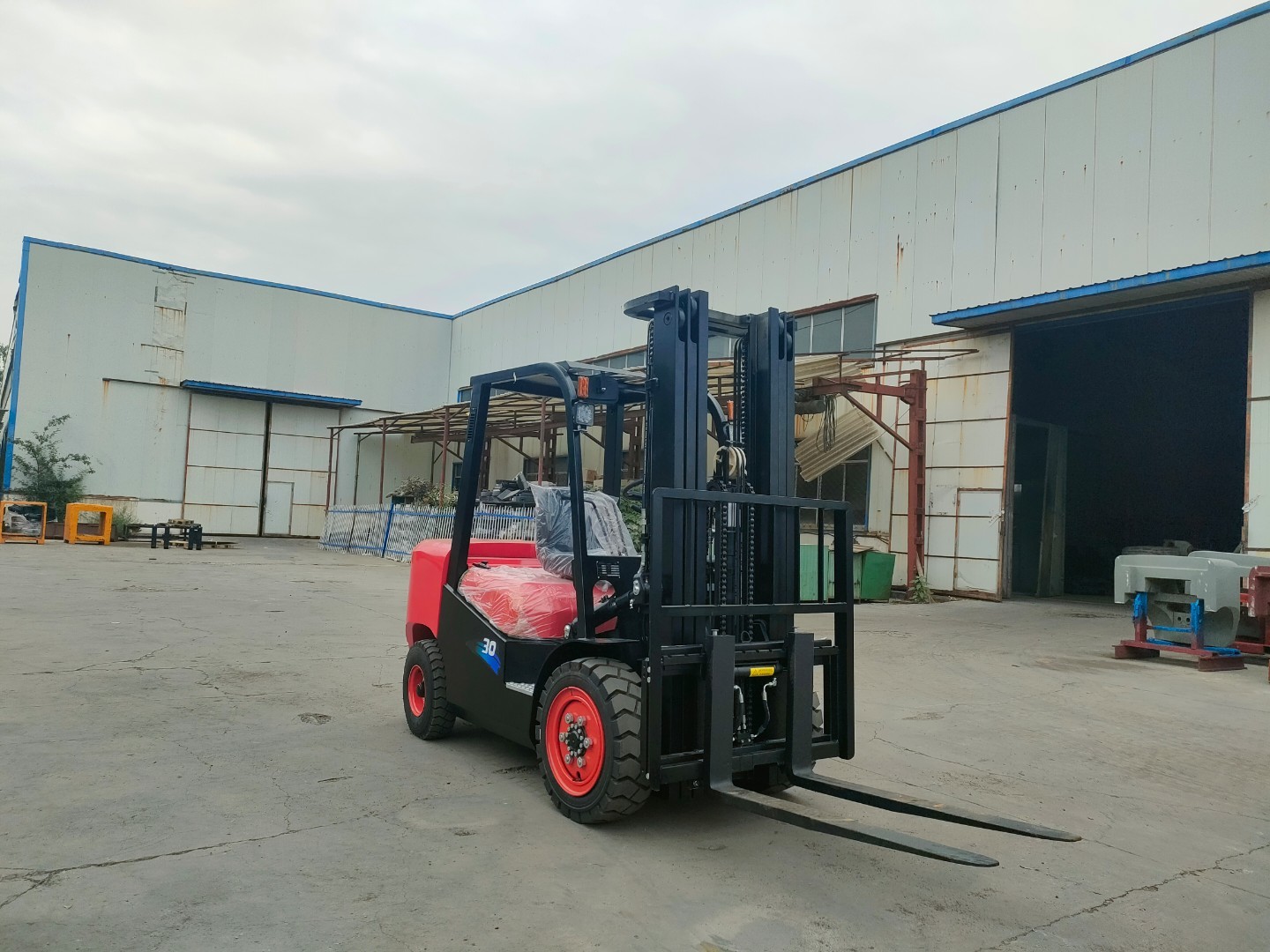

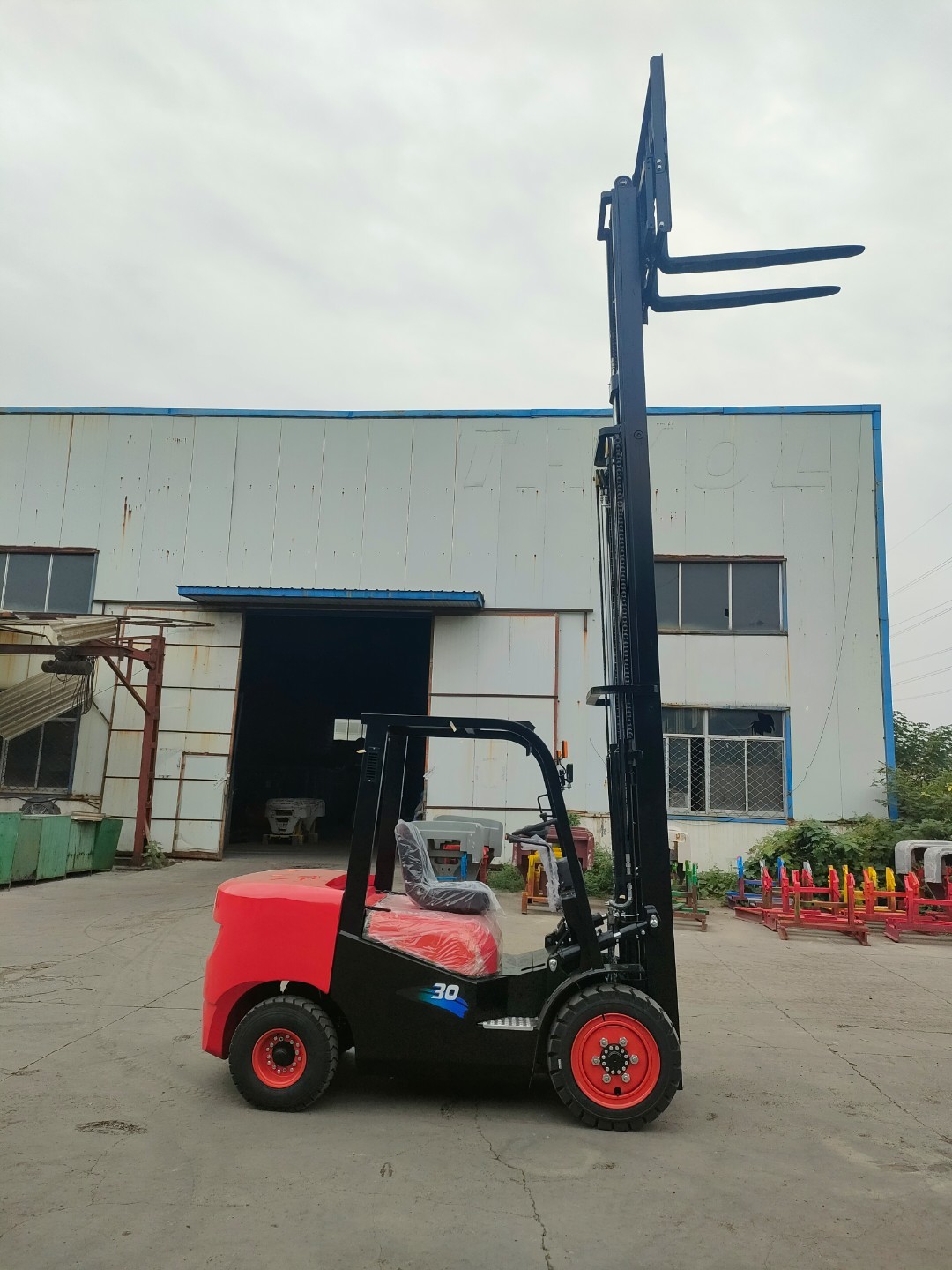

5 Ton Heavy Duty Diesel Forklift Imported Engine Unmatched Power
This next-generation diesel forklift integrates intelligent technology with human-centric design to maximize productivity, reduce operator fatigue, and provide unparalleled control.
Smart Power Management System: Features an advanced ECU that automatically optimizes fuel injection and engine power output based on the load, significantly boosting fuel economy without sacrificing performance.
Enhanced Operator Ergonomics: The ultra-wide view mast is standard, combined with a fully adjustable suspension seat, a low-effort steering wheel, and logically placed controls to minimize fatigue during long shifts.
Integrated Safety & Lighting Package: Goes beyond LED lights with additional standard features like a rearview camera interface, LED warning beacons, and a digital display providing real-time vehicle status alerts.
Data & Connectivity Ready: Comes pre-equipped with ports for fleet management and telematics systems, allowing for easy monitoring of location, fuel usage, and maintenance needs.
|
Model
|
|
CPC30/CPCD30
|
|
Rated Capacity
|
kg
|
3000
|
|
Load Center
|
mm
|
500
|
|
Power Type
|
|
Diesel
|
|
Max, Lifting Speed (No-Load / Full-Load)
|
mm/s
|
450 / 440
|
|
Max. Driving Speed (Full-Load /No-Load)
|
km/h
|
18 / 20
|
|
Max. Towing Capacity(Full-Load/No-Load
|
kN
|
15.5 / 10.5
|
|
Gradeability(Full-Load/No-Load)
|
%
|
15 / 20
|
|
Lifting Height
|
mm
|
3000
|
|
Free Lift Height
|
mm
|
80
|
|
Mast Tilting Angle (Forward-Backward)
|
(°)
|
6 / 12
|
|
Min.Turning Radius
|
mm
|
2530
|
|
Min.Right Angle Aisle Width
|
mm
|
2050
|
|
Min. Ground Clearance
|
mm
|
135
|
|
Overall Length (including Fork)
|
mm
|
4170
|
|
Overall Width
|
mm
|
1230
|
|
Overall Height (Mast Lowered)
|
mm
|
2110
|
|
Overall Height (Mast Extended)
|
mm
|
4270
|
|
Overall Height to Overhead
|
mm
|
2105
|
|
Front Overhang
|
mm
|
465
|
|
Wheelbase
|
mm
|
1760
|
|
Front Tread
|
mm
|
1000
|
|
Rear Tread
|
mm
|
970
|
|
Front Wheel
|
mm
|
28*9-15
|
|
Rear Wheel
|
mm
|
6.50-10
|
|
Fork Width
|
mm
|
122
|
|
Fork Thickness
|
mm
|
45
|
|
Backrest Height
|
mm
|
1225
|
|
Fork Length
|
mm
|
1220
|
|
Engine Model
|
|
C490BPG
|
|
Rate Power
|
KW
|
40
|
|
Rotate Speed at Rate Power
|
rpm
|
2650
|
|
Max. Torque
|
Nm
|
162
|
|
Rotation Speed at Max. Torque
|
rpm
|
1800 ~ 1900
|
|
Type of Power Shift
|
|
Mechanical / Hydraulic
|
|
Curb Weight
|
kg
|
4100
|
![]()
Q1. What is your terms of packing? A: Generally, we pack our goods in paper package and Iron pallet. We can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment? A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. Or As negotiated
Q3. What is your terms of delivery? A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time? A: Generally, it will take 5 to 30 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.
Q5. Do you test all your goods before delivery? A: Yes, we have 100% test before delivery
Q6: How do you make our business long-term and good relationship? 1. We keep good quality and competitive price to ensure our customers benefit ; 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
