Taizhou Kayond मशीनरी कं, लिमिटेड
| उत्पत्ति के प्लेस: | चीन |
|---|---|
| ब्रांड नाम: | KAD |
| प्रमाणन: | CE/ISO9001 |
| मॉडल संख्या: | सीडीडी20 |
| न्यूनतम आदेश मात्रा: | 1 |
| मूल्य: | $7199 |
| पैकेजिंग विवरण: | लौह फूस + प्लास्टिक फिल्म |
| प्रसव के समय: | 15कार्य दिवस |
| भुगतान शर्तें: | एल/सी, डी/ए, डी/पी, टी/टी, वेस्टर्न यूनियन |
| आपूर्ति की क्षमता: | 50यूनिट/माह |
| प्रतिरूप संख्या।: | सीडीडी20 | भार क्षमता: | 1-2 टन |
|---|---|---|---|
| भार केन्द्र: | 500 मिमी | लिफ्ट की ऊंचाई: | 1-10 मी |
| बैटरी की क्षमता: | 24वी/280एएच | कांटा आकार: | 1220*100*40 मिमी |
| धरातल: | 30 मिमी | टर्निंग रेडियस: | 1500 मिमी |
| ड्राइविंग गति: | 4km/एच | ढाल: | 3 डिग्री / 5 डिग्री |
| मोटर चलाना: | 0.8 किलोवाट | मोटर उठाना: | 0.8 किलोवाट |
| टायर का आकार: | 300/250 मिमी | संपूर्ण आकार: | 2570*1390*2200मिमी |
| वज़न: | 2800 किग्रा |

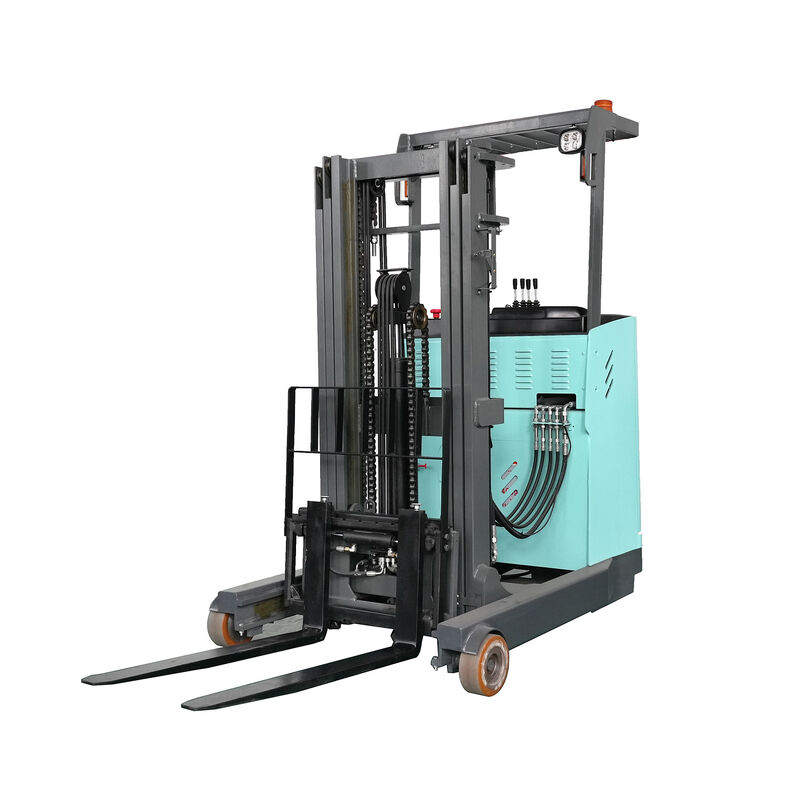

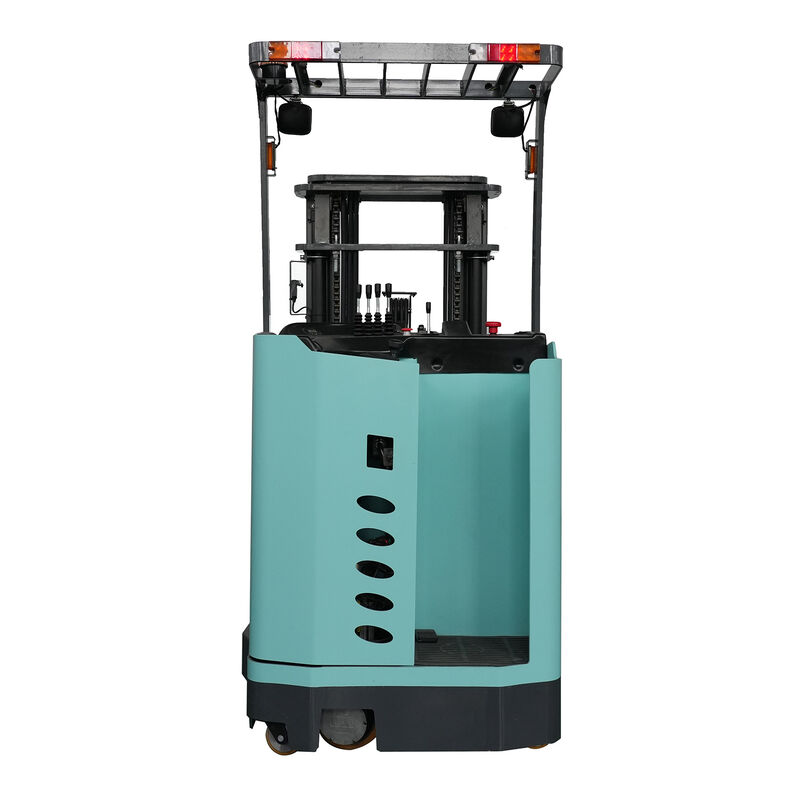

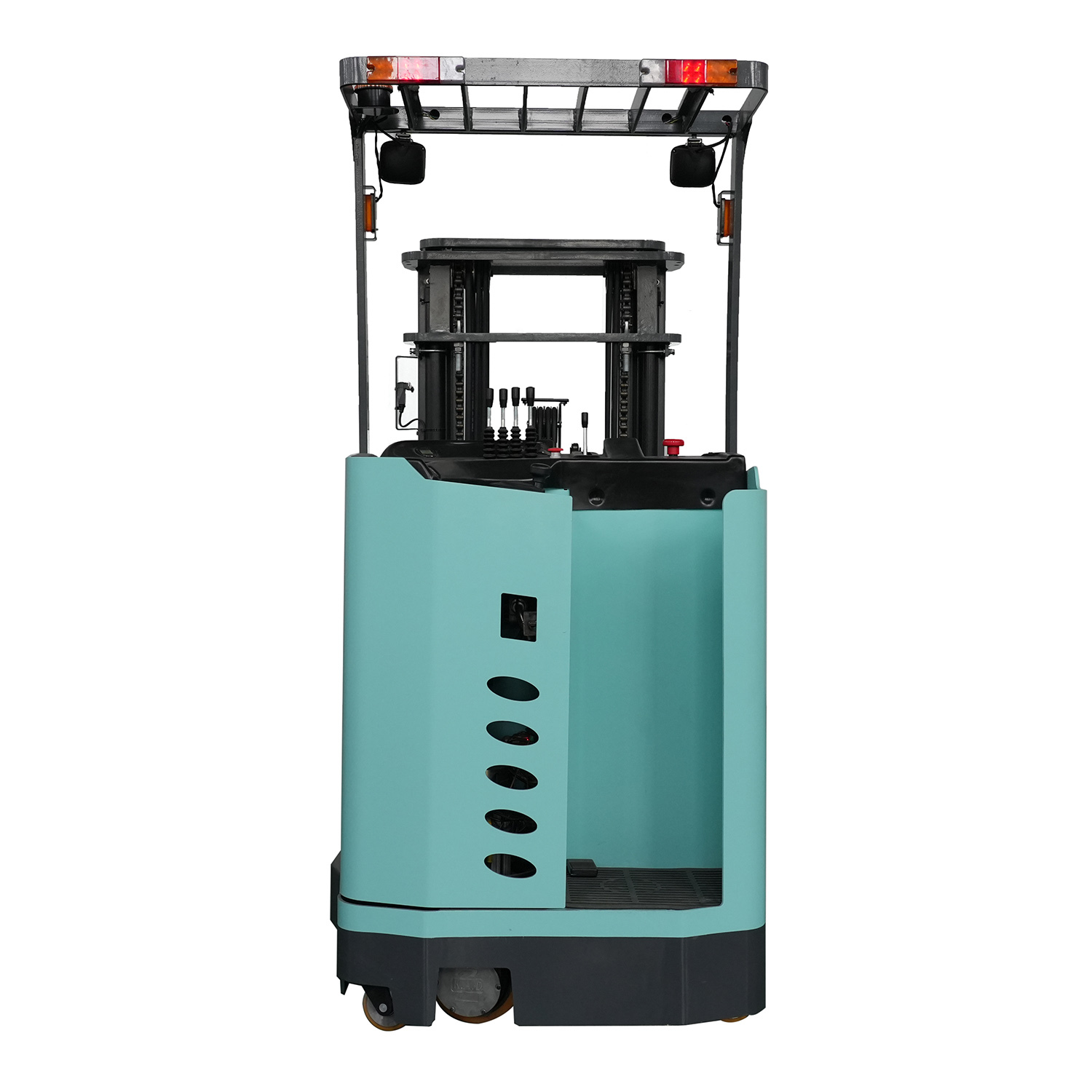

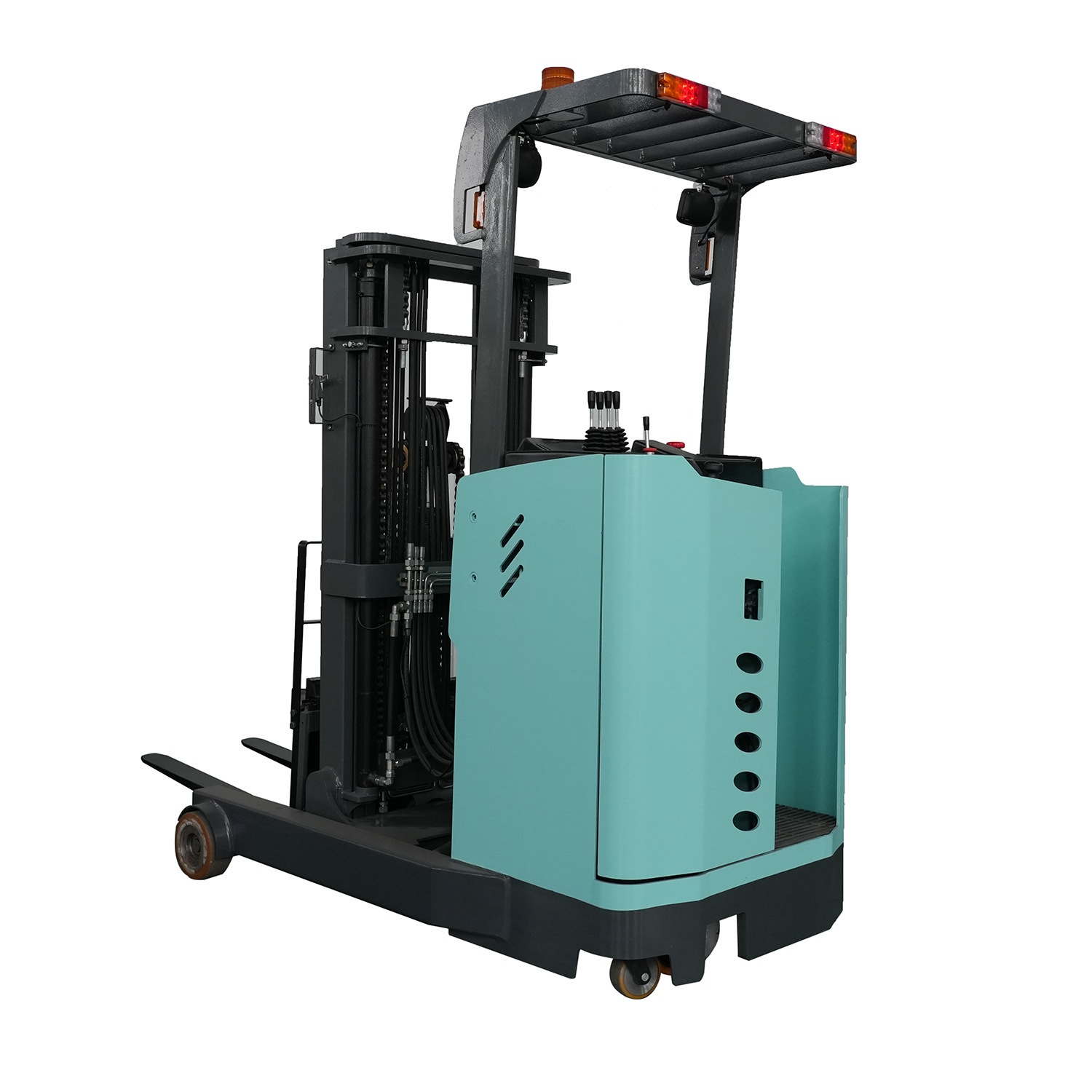

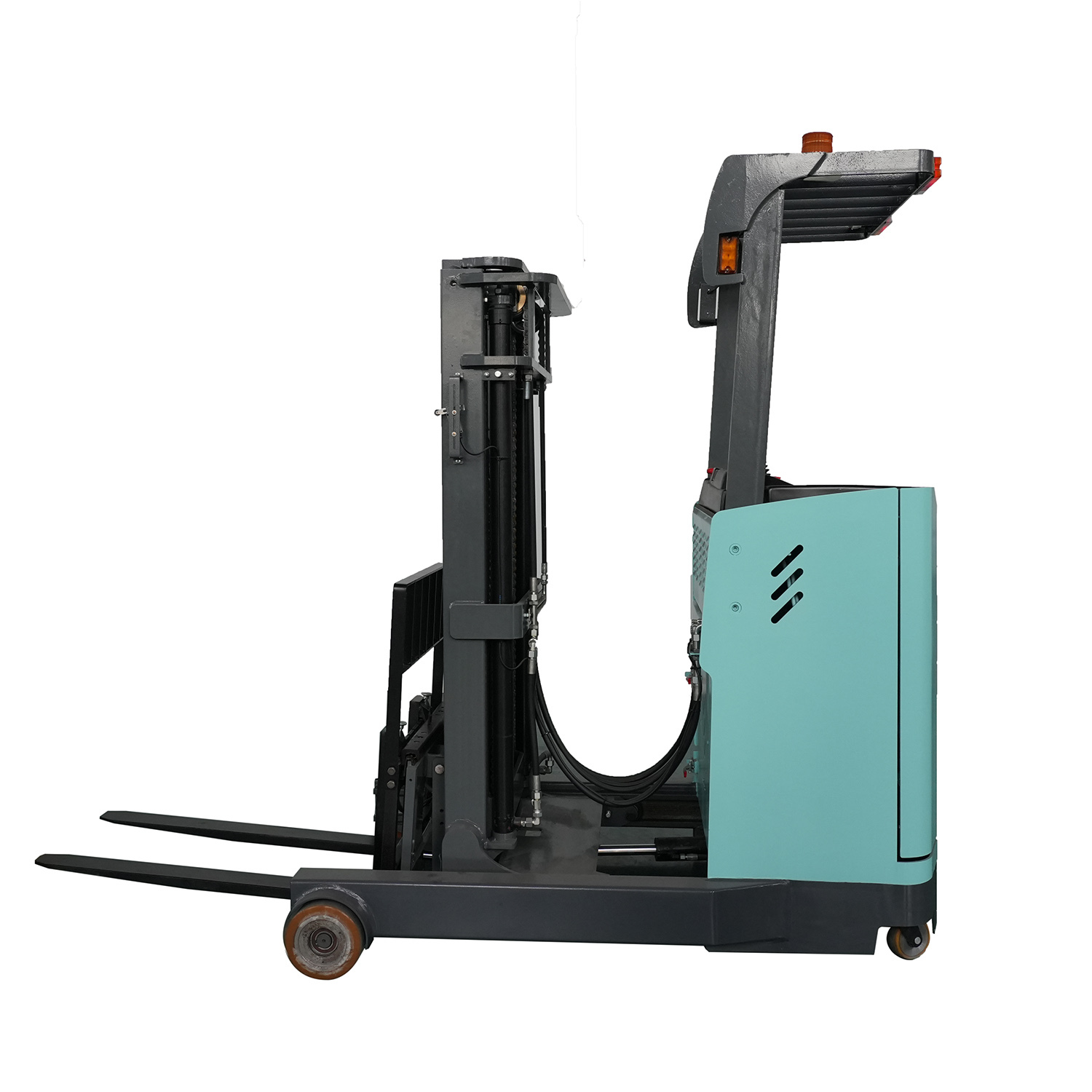

The reach forklift offers superior advantages in versatility and operational flexibility. Beyond the traditional reach forklift's capabilities, such as its adjustable mast and forks, which blend the benefits of electric stackers and counterbalanced forklifts, the side-shift feature allows for more efficient and precise handling in narrow or complex workspaces. This differentiation enables the to excel in various material handling scenarios.with side shiftreach forklift with side shiftFrist Class Ride on Electric Reach Truck Forklift for Narrow Aisle Warehouse with EPS
The reach forklift offers superior advantages in versatility and operational flexibility. Beyond the traditional reach forklift's capabilities, such as its adjustable mast and forks, which blend the benefits of electric stackers and counterbalanced forklifts, the side-shift feature allows for more efficient and precise handling in narrow or complex workspaces. This differentiation enables the to excel in various material handling scenarios.with side shiftreach forklift with side shiftFrist Class Ride on Electric Reach Truck Forklift for Narrow Aisle Warehouse with EPS
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Load capacity at the highest point
|
kg
|
1000
|
1000
|
|
Weight
|
kg
|
2500
|
2800
|
|
Overall length (forks retracted)
|
mm
|
2570
|
2570
|
|
Overall width
|
mm
|
1100/1390
|
1100/1390
|
|
Static height of gantry
|
mm
|
2100
|
2100
|
|
Height of roof rack
|
mm
|
2200
|
2200
|
|
Moving forward distance
|
mm
|
600
|
600
|
|
Ground clearance
|
mm
|
45
|
45
|
|
Minimum outside turning radius
|
mm
|
1600
|
1600
|
|
Maximum gradient with full load
|
%
|
5
|
5
|
|
Load centre distance
|
mm
|
500
|
500
|
|
Type specification of travelling motor
|
-
|
ZQD13-1C
|
ZQD13-1C
|
|
Travelling motor 1min working current
|
A
|
195
|
195
|
|
Battery capacity
|
-
|
280Ah/24V
|
280Ah/24V
|
